首頁 > 產品 > HL電動執行機構 > 帶本地控制器的HL執行機構

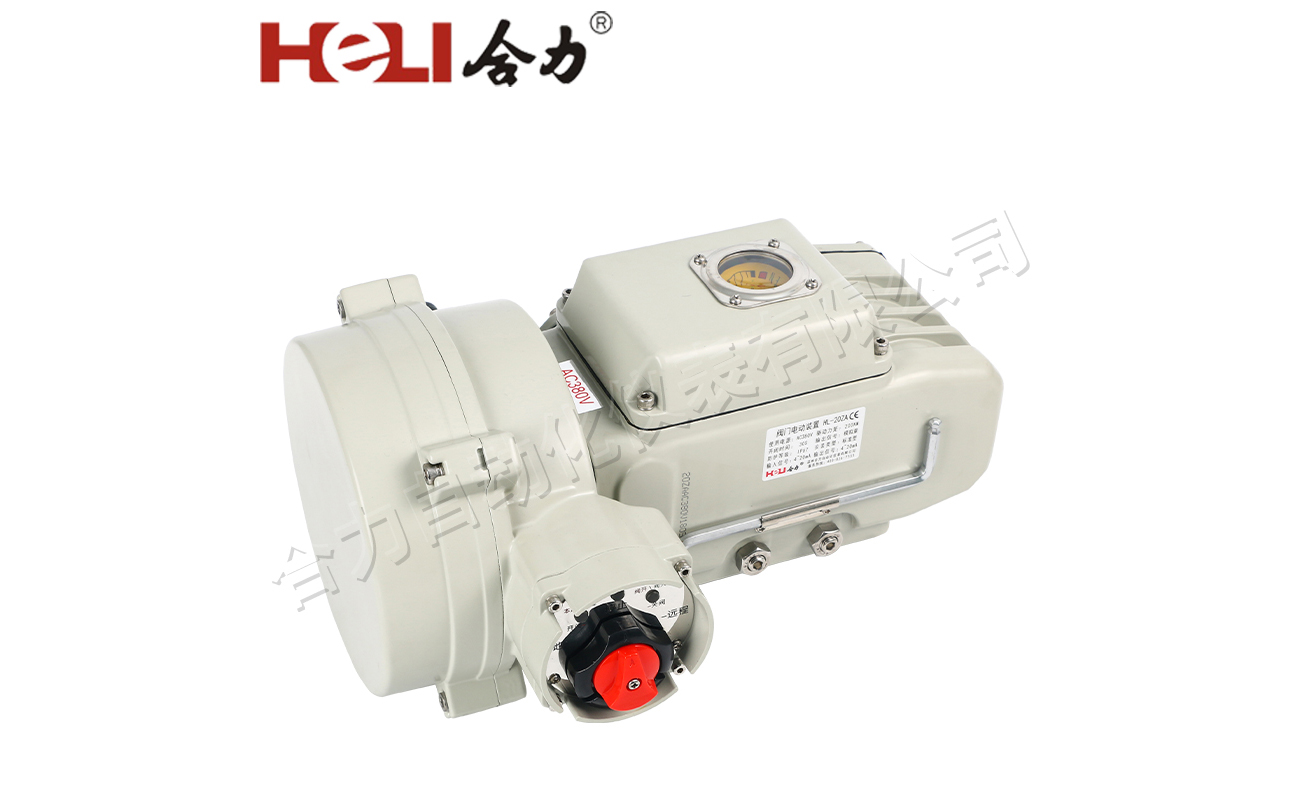

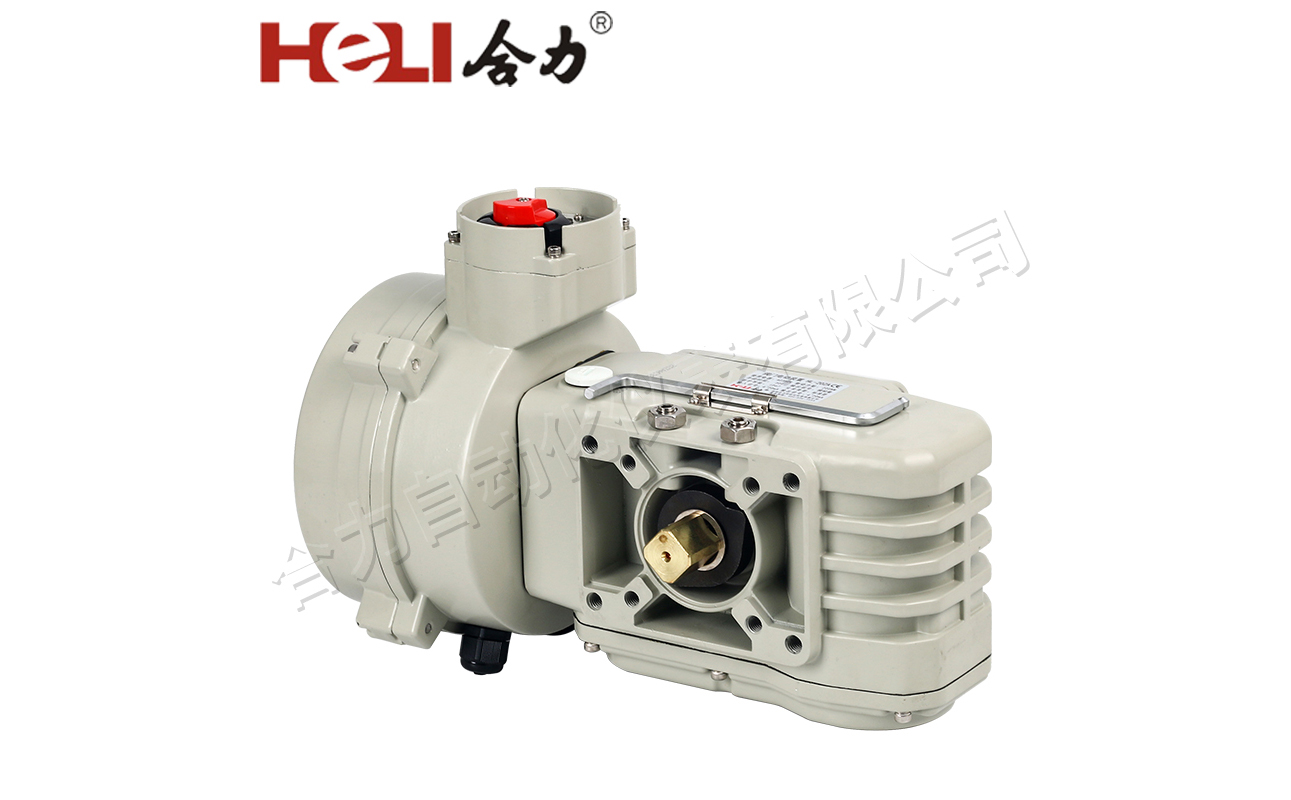

帶本地控制器的HL執行機構
  • 產品描述
  • 產品參數
  • 訂單咨詢
  • 資質證書
頂端

  Technical parameter


Performance

Model

HL-05ZA

HL-10ZA

HL-20ZA

HL-50ZA

HL-100ZA

HL-200ZA

HL-400ZA

HL-600ZA

Power

AC110VAC220V、AC380V

Motor power

10W

23W

40W

90W

100W

100W

200W

200W

Rated current

0.24A
(AC220V)

0.32A
(AC220V)

0.48A
(AC220V)

0.92A
(AC220V)

1.0A
(AC220V)

1.2A
(AC220V)

2.1A
(AC220V)

2.1A
(AC220V)

Output torque

50Nm

100Nm

200Nm

500Nm

1000Nm

2000Nm

4000Nm

6000Nm

Action time

30S

30S

30S

30S

50S

100S

100S

150S

Rotary angle

0-90°

Input signal

4~20mADC1~5VDC、0-10VDC(Others would be set before sale)

Output signal

4~20mADC(Others would be set before sale)

Voltage- withstandingvalue

DC12V、DC/AC24V;500VAC/1min
1500VAC/1
min

Insulted resistance

DC12V、DC/AC24V;100VAC/300VDC
100MΩ/500VDC

Enclosure protection

IP-67

Surrounding temperature

-25-60℃(The other temperatures can be customized)

Installation angle

Any angle

Case material

Aluminium alloy die-casting

Optional function

Overtorque protection、Heater space、Overheat protection

Product color

milk white (other colors customized)
